Compression and Tensile Type Load Cell IP66 Alloy Steel Stainless Steel

Ask Lasest Price
Brand Name :	TOP SENSOR
Model Number :	CL-07
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	2000 pcs per month
Delivery Time :	15-25 days

Add to Cart

Product Details
Company Profile

Compression and Tensile Type Load Cell IP66 Alloy Steel Stainless Steel

Compression and Tensile Type Load Cell IP66 Alloy Steel,Stainless Steel

Micro Load Cell ,Alloy Steel ,Stainless Steel

Spoken Load Cell, Compression Weighing Model: CL-07 CAPACITY: 0.5KG-200KG Features: High Strength Alloy steel, High Precision, Oil-proof, Waterproof IP66 Spoke type, easy installation, suitable for electronic truck scales, Platform scales and other electronic weighing devices

Micro Load Cell, Compression and Tensile Weighing
Model: CL-07
Capacity: 0.5KG-200KG
Features:

High Strength Alloy steel, High Precision, Oil-proof, Waterproof IP66
Spoke type, easy installation, suitable for electronic truck scales,
Platform scales and other electronic weighing devices

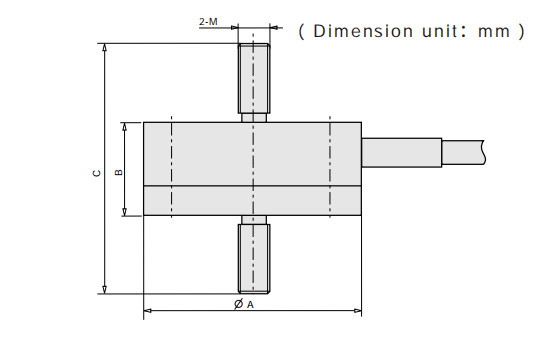

Dimensions:(mm)

Capacity	A	B	C	M
0.5-5kg	28	16	38	M4X0.7
10-200kg	33	22	46	M6X1

SPECIFICATION:
Precision:	C2
Combined Error:	±0.1
Rated Output:	1mv/v±0.1
Creep(%F.S/30min):	±0.5
Non-linearity(%F.S)	±0.5
Hysteresis:(%F.S)	±0.5
Zero balance(%F.S):	±1.0
Input resistance:	350±5
Output resistance:	350±5
Insulation resistance:	≥5000(100VDC)
Temp. effect on span(%F.S/10℃):	±0.5
Temp. effect on zero(%F.S/10℃):	±0.5
Use temp. range(℃ ):	-20～+55
Excitation voltage(V) : :	9～12(DC)
Safety overload (%F.S)	150%
Ultimate overload (%F.S)	200%
Defend grade	IP66
Cable Length:	3 meters -10 meters
