Column Truck Scale Load Cell Weighing Capacity Range 10t 20t 30t 40t

Ask Lasest Price
Brand Name :	Top Sensor
Model Number :	CR-05
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T, Western Union
Delivery Time :	15-20 days

Add to Cart

Product Details
Company Profile

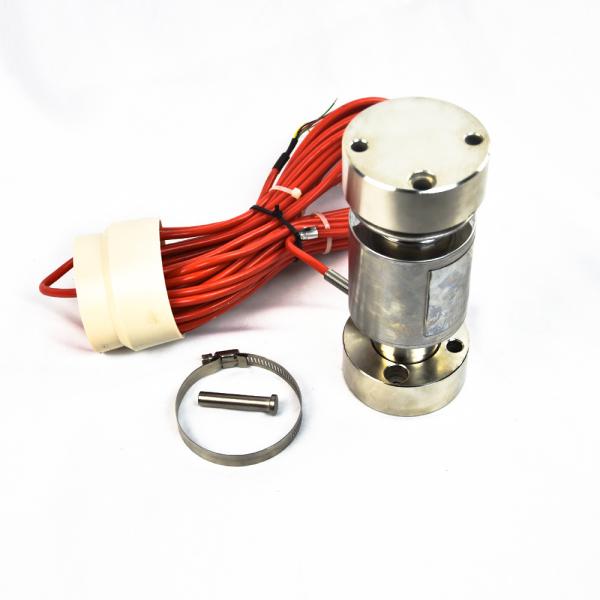

Column Truck Scale Load Cell Weighing Capacity Range 10t 20t 30t 40t

Column Load Cell,Truck Scale Load Cell Weighing Capacity Range 10t 20t 30t 40t

Canister Load Cells CR-05

Canister Load Cell, Column Type, Compression Weighing CAPACITY: 10-40T Features: Canister Load Cell, High Accuracy, More Stable, The Weighing Capacity range: 10-40t, Stainless Steel Structure, Compression Load Cell Laser Sealed, Water Proof to IP68

Canister Load Cell, Column Type, Compression Weighing
Model: CR-05
Capacity: 10-40T
Features:
Canister Load Cell, High Accuracy, More Stable,
The Weighing Capacity range: 10t,20t.30t,40t
Alloy Steel or Stainless Steel Structure, Compression Load Cell
Laser Sealed, Water Proof to IP67,
APPLICATIONS: Suit for Truck Scale, Weigh Bridge and other electronic weighing equipment

Dimensions (mm):

Precision: 0.02%F.S	Insulation resistance: ≥5000MΩ(100VDC)
Rated output: 2±0.003mv/v	Excitation voltage: 9~12VDC
Non-linearity: 0.03%F.S	Compensated temp.range: -10~+40℃
Hysteresis: 0.03%F.S	Use temp.range: -20~+55℃
Repeat: 0.02%F.S	Temp.effect on zero: 0.02F.S/10℃
Creep: 0.02%F.S/30min	Temp.effect on span: 0.02F.S/10℃
Zero balance: ±1%F.S	Safe overload: 150%
Input resistance: 700±10Ω	Ultimate overload: 200%
Output resistance: 700±5Ω	Defend grade: IP68
Wire Connection	Cable Length
Red (Input+) Black (Input-)	φ5mm 16 meteres
White (Output-) Green (Output+)	φ5mm 16 meteres
