Miniature Micro Load Cell Weight Sensor 0.5kg,1kg,2kg,5kg,10kg,20kg SL-02

Ask Lasest Price
Price :	Negotiable
Brand Name :	TOP SENSOR
Model Number :	SL-02
Payment Terms :	T/T
Supply Ability :	20000 pcs per month
Delivery Time :	25-30 days

Add to Cart

Product Details
Company Profile

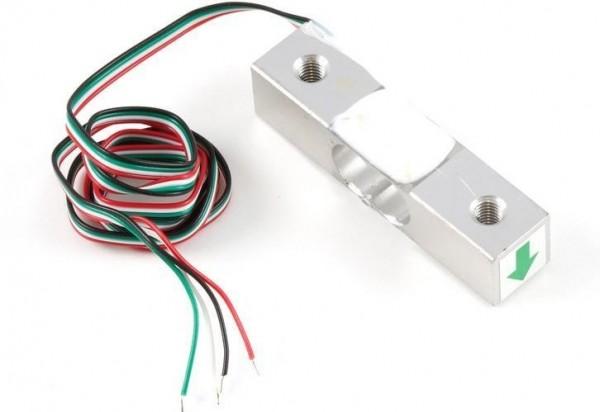

Miniature Micro Load Cell Weight Sensor 0.5kg,1kg,2kg,5kg,10kg,20kg SL-02

Miniature Load Cells , Micro Load Cell , Weight Sensor , 0.5kg,1kg,2kg,5kg,10kg,20kg Load Cell

Miniature Load Cells,Small Load Cell, Model SL-02

Micro Load Cell, Miniature Load Cell Model: SL-02 CAPACITY: 1kg-50kg Features: Alloy Aluminum material, High Precision, Colourless anodized, small size, low costs Parallel Beam type, easy installation, suitable for electronic kitchen scales

Micro Load Cell, Miniature Load Cell

Model: SL-02
Capacity: 1kg-50kg
Features:Alloy Aluminum material, High Precision, Colourless anodized, small size, low costs,Parallel Beam type, easy installation, suitable for electronic kitchen scales
Dimensions:(mm)

Specification

Precision:	0.05% FS
Rated Output:	1.0 ±0.01 mv/v
Creep(%F.S/30min):	±0.05
Zero balance(%F.S):	±1.0
Input resistance:	1000±10
Output resistance:	1000±5
Insulation resistance	≥5000(100VDC)
Temp.effect on span(%F.S/10℃)	±0.03
Temp.effect on zero(%F.S/10℃):	±0.03
Use temp.range(℃):	9～12(DC)
Safety overload (%F.S)	120%
Ultimate overload (%F.S)	150%
Defend grade	IP65
Cable Length:	220 -660 mm
Wire Connection Method
RED=Input+ BLACK=Input- GREEN=Output+ WHITE=Output-
