Name: Single Beam Type Load Cell 100kg 500kg 1000kg 2000kg 5000kg 10000kg
Brand: TOP SENSOR
Price: 1 USD

Add to Cart

Single Shear Beam Load Cell

Model:SD-03
Capacity:0.2-10t / 0.5-20Klb

Features:
Alloy steel structure; Weld sealing IP67
Applications:
Electronic platform scales, vehicle scales, railroad scales etc

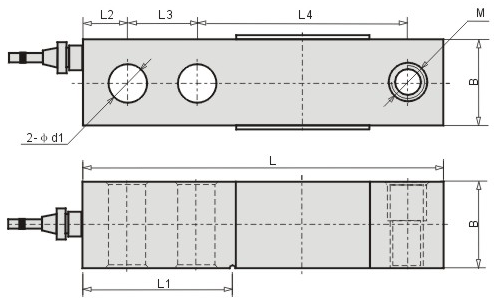

Dimensions:

Precision: 0.02%F.S	Insulation resistance: ≥5000MΩ(100VDC)
Rated output: 2±0.003 mv/v or 3mv/v	Excitation voltage: 9~12VDC
Non-linearity: 0.03%F.S	Compensated temp.range: -10~+40℃
Hysteresis: 0.03%F.S	Use temp.range: -20~+55℃
Repeat: 0.02%F.S	Temp.effect on zero: 0.03F.S/10℃
Creep: 0.02%F.S/10min	Temp.effect on span: 0.02F.S/10℃
Zero balance: ±1%F.S	Safe overload: 120%
Input resistance: 350±5Ω	Ultimate overload: 150%
Output resistance: 350±3Ω	Defend grade: IP67
Cable Length :3 meters , 5 meters or on request
