Double Shear Beam Load Cells 500kg 1 Ton Alloy Steel Construction Nickel Plated Material

Ask Lasest Price
Price :	Negotiable
Brand Name :	Top Sensor
Model Number :	DB-08
Certification :	CE
Payment Terms :	T/T, Western Union
Supply Ability :	2000 pcs per month

Add to Cart

Product Details
Company Profile

Double Shear Beam Load Cells 500kg 1 Ton Alloy Steel Construction Nickel Plated Material

Load Cell DB-08 Alloy Steel Construction Nickel Plated Material

Shear Beam Load Cells DB-08
Double Shear Beam Load Cells ,Bridge Load Cells. Model:DB-08 Capacity: 1-75Klb Alloy steel construction, nickel plated, hermetically welded, oil-proof, waterproof and anti-corrosion Dual shear beam, Suitable for electronic truck scales, railway scales and other electronic weighing devices

Double Shear Beam Load Cells ,Bridge Load Cells.

Model:DB-08
Capacity: 1-75Klb
Alloy steel construction, nickel plated, hermetically welded, oil-proof, waterproof and anti-corrosion
Dual shear beam, Suitable for electronic truck scales, railway scales and other electronic weighing devices.
Easy Installation, High Accuracy, Reliable performance.

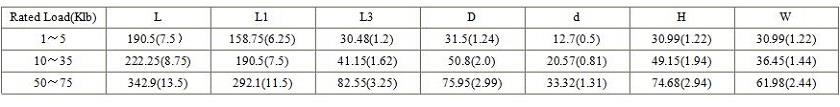

Dimensions: (mm)

Technincal Parameters:

Accuracy:	0.02% F.S
Rated Output(mV/V):	2.0 ±0.001 / 3.0 ±0.001
Non-linearity(dlin)/%F.S	±0.02
Creep(%F.S/30min):	±0.02
Hysteresis %F.S	±0.02
Repeatability %F.S	±0.02
Zero balance mV/V:	±0.01
Input resistance:	750±10
Output resistance:	700±10
Insulation resistance:	≥2000(100VDC)
Temp. effect on span(%F.S/10℃):	±0.02
Temp. effect on zero(%F.S/10℃):	±0.02
Use temp. range(℃ ):	-30～+40
Excitation voltage(V) : :	10～12(DC) Reference 10V
Safety overload (%F.S)	150%
Ultimate overload (%F.S)	200%
Defend grade	IP68
Cable Length:	12-19 meters, other length available
Material	Alloy Steel or Stainless Steel
Wire Connection	Red (Input+), Black(Input-), Green(Output+),White(Output-)
