    IP67 Water Protection Double Shear Beam Load Cell 3t 5t 10t

    Ask Lasest Price
    Brand Name : TOP SENSOR
    Model Number : DB-02
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 3000 pcs per month
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    IP67 Water Protection Double Shear Beam Load Cell 3t 5t 10t

    Double Shear Beam Load Cells
    Model: DB-02
    Capacity: 3t ,5t,10t

    Features:
    Double Shear Beam Load Cell, Capacity 5t, 10t
    Material: Alloy Steel construction, nickel plated
    Easy Installation, High Accuracy, Reliable performance
    Application: Weigh Bridge, Truck Scale, railway weighing

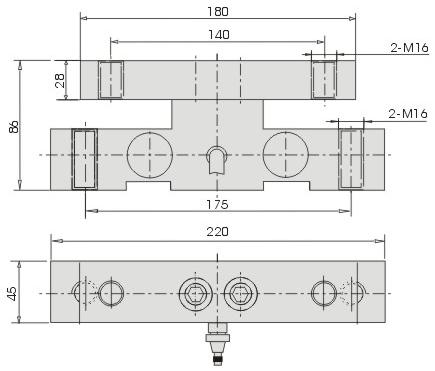

    Dimensions: (mm)

    Wire Connection:


    Parameters:


    Precision:

    C2

    Rated Output:

    2mv/v±0.003

    Creep(%F.S/30min):

    ±0.02

    Zero balance(%F.S):

    ±1.5

    Input resistance:

    700±5

    Output resistance:

    700±5

    Insulation resistance:

    ≥5000(100VDC)

    Temp.effect on span(%F.S/10℃):

    ±0.017

    Temp.effect on zero(%F.S/10℃):

    ±0.02

    Use temp.range(℃ ):

    -20～+55

    Excitation voltage(V):

    9～12(DC)

    Safety overload (%F.S)

    150%

    Ultimate overload (%F.S)

    200%

    Defend grade

    IP68

    Cable Length:

    5 meters -15 meters
