    Multi Column Type Load Cell CR-01 / Canister Load Cell Compression Weighing

    Ask Lasest Price
    Brand Name : TOP SENSOR
    Model Number : CR-01
    Payment Terms : T/T, Western Union
    Supply Ability : 500 pcs per month
    Price : Negotiable
    • Product Details
    • Company Profile

    Multi Column Type Load Cell CR-01 / Canister Load Cell Compression Weighing

    Canister Load Cell, Column Type, Compression Weighing

    Model: CR-01

    CAPACITY: 10T-100T

    Features:

    This Canister Load Cell is Multi Column Type, More Stable and Better Precision

    The Capacity range from 10t to100t,

    Stainless Steel Structure,Good performance,

    Laser Sealed,Water Proof to IP67,

    APPLICATIONS: Suit for Truck Scale, Weigh Bridge and other electronic weighing equipment

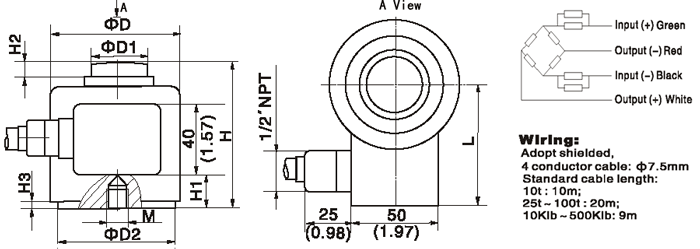

    Dimensions:(mm)

    SPECIFICATION

    Precision:

    C2

    Rated Output:

    2.0 ±0.003

    Creep(%F.S/30min):

    ±0.02

    Zero balance(%F.S):

    ±1.0

    Input resistance:

    450±5

    Output resistance:

    480±5

    Insulation resistance:

    ≥5000(100VDC)

    Temp. effect on span(%F.S/10℃):

    ±0.017

    Temp. effect on zero(%F.S/10℃):

    ±0.02

    Use temp. range(℃):

    -20～+55

    Excitation voltage(V):

    9～12(DC)

    Safety overload (%F.S)

    150%

    Ultimate overload (%F.S)

    200%

    Defend grade

    IP67

    Cable Length:

    10 meters -20 meters

    Wire Connection Method

    RED=Input+

    BLACK=Input-

    GREEN=Output+

    WHITE=Output-
