S Type Crane Scale Load Cell Alloy Aluminum Material IP67 Water Protection

S Beam Load Cells SS-02

S beam Load Cells, Tension and Compression Weighing Model: SS-02 CAPACITY: 5-200kg Features: S beam Load Cell, Capacity range from 5kg to 200kg Material: Alloy Aluminum, good quality, High accuracy and low costs, Glue Sealed, Water Proof to IP67, APPLICATIONS: Crane scale, hopper scale

S beam Load Cells, Tension and Compression Weighing

Model: SS-02
Capacity: 5-200kg
Features:

S beam Load Cell, Capacity range from 5kg to 200kg
Material: Alloy Aluminum, good quality, High accuracy and low costs,
Glue Sealed, Water Proof to IP67,

Application: Crane scale, hopper scale and other electronic weighing test.

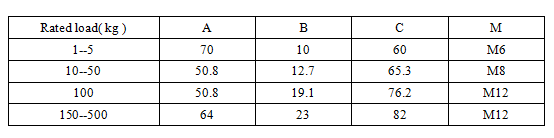

Dimensions:(mm)

SPECIFICATION
Precision:		C2/C3
Rated Output:		2mv±0.003
Creep(%F.S/30min):		±0.02
Zero balance(%F.S):		±1.0
Input resistance:		350±5
Output resistance:		350±5
Insulation resistance:		≥5000(100VDC)
Temp. effect on span(%F.S/10℃):		±0.017
Temp. effect on zero(%F.S/10℃):		±0.02
Use temp. range(℃):		-20～+55
Excitation voltage(V):		9～12(DC)
Safety overload (%F.S)		120%
Ultimate overload (%F.S)		150%
Defend grade		IP67
Cable Length:		3 meters -10 meters
Wire Connection Method
RED=Input+	BLACK=Input-	GREEN=Output+	WHITE=Output-
