    IP67 Waterproof Truck Axle Scales With Ramp / Mobile Truck Weigh Scales

    Ask Lasest Price
    Brand Name : TOP SENSOR
    Model Number : TS-05
    Certification : CE
    Payment Terms : T/T, Western Union
    Supply Ability : 200 pcs per month
    Delivery Time : 20-25 days
    Price : Negotiable
    • Product Details
    • Company Profile

    IP67 Waterproof Truck Axle Scales With Ramp / Mobile Truck Weigh Scales

    IP67 Waterproof Truck Axle Scales With Ramp / Mobile Truck Weigh Scales


    Portable Axle Scales, Weigh Pad, Model: TS-05

    Capacity:10t,15t,20t

    Description:

    • Ultra Low Profile weigh pad scale

    • Aluminum-alloy; Easily mounted / unmounted slope;

    • Light weight, and convenient transportation.and high precision. large platform size

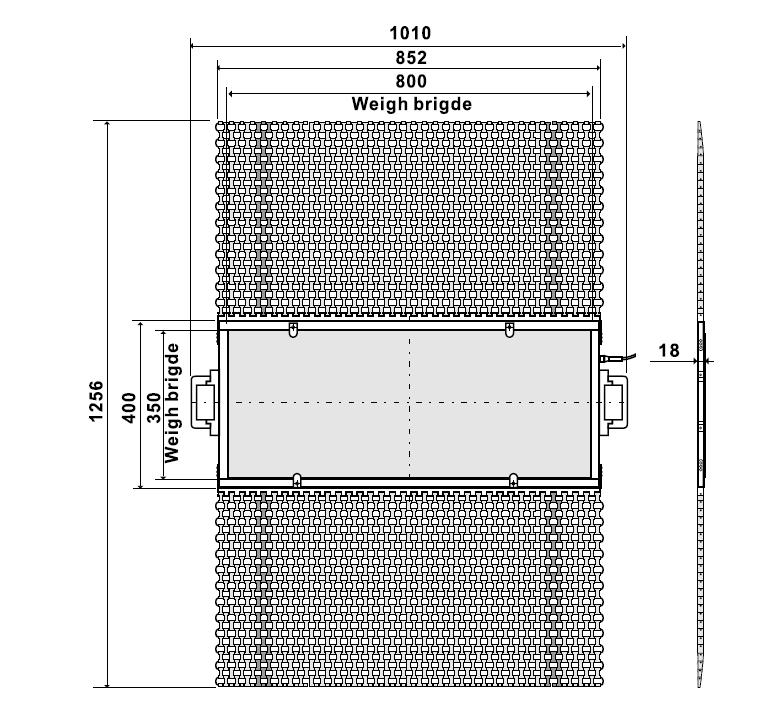

    DIMENSIONS(mm):


    PARAMETERS:



    Precision (%F.S): 0.1~0.5

    Insulation resistance(M)5000(100VDC)


    Dynamic Error(%F.S): 1.5 (1~5km/h) 3~5 (5~10km/h)

    Compensated temp.range(℃): -10~+50


    Rated output(mV/V): 1.0±0.1 & 1.5±0.1

    Use temp.range(℃): -30~+80


    Non-linearity(%F.S): 0.2

    Temp.effect on zero(F.S/10℃): 0.03


    Error on corners(%F.S): 0.2

    Temp.effect on span(F.S/10℃): 0.05


    Repeatariy(%F.S): 0.05

    Safe overload(%): 120


    Zero balance(%F.S)1

    Ultimate overload(%): 150


    Excitation voltage(VDC): 9~15

    Net weight(kg): 21(10t,20t)


    Recommended voltage(V): 10

    Defend grade: IP66
