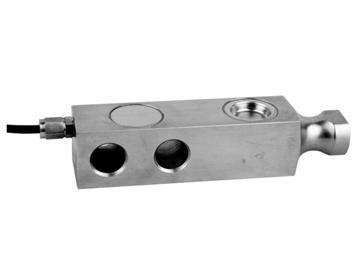

Single Ended Shear Beam Load Cell High Accuracy Capacity 500kg-5000kg

Ask Lasest Price
Brand Name :	Top Sensor
Model Number :	SD-07
Certification :	CE
Payment Terms :	D/P, T/T, Western Union
Supply Ability :	2000 pcs per month
Delivery Time :	25-30 days
Price :	Negotiable

Add to Cart

Product Details
Company Profile

Single Ended Shear Beam Load Cell High Accuracy Capacity 500kg-5000kg

Shear Beam Load Cells ,Single Shear Bean Load Cell,Alloy Steel Load Cell,SD-07

Shear Beam Load Cells SD-07

Single Shear Beam Load Cells Model: SD-07 CAPACITY: 500kg-5000kg Features: Single Shear Beam Load Cell, Capacity range from 500kg to 5000kg Material: Alloy Steel or Stainless Steel, good quality, High accuracy and low costs, hermetically welded, oil-proof,waterproof and anti-corrosion

Single Shear Beam Load Cells

Model: SD-07
CAPACITY: 500kg-5000kg
Features:

Single Shear Beam Load Cell, Capacity range from 500kg to 5000kg
Material: Alloy Steel or Stainless Steel, good quality,
High accuracy and low costs, hermetically welded, oil-proof,waterproof and anti-corrosion

Application: Floor scales, Platform scales, or other weighing machine

Dimensions: (mm)

Parameters:

Precision:		C3
Rated Output:		2mv/v±0.003
Creep(%F.S/30min):		±0.02
Zero balance(%F.S):		±1.0
Input resistance:		350±5
Output resistance:		350±5
Insulation resistance:		≥5000(100VDC)
Temp. effect on span(%F.S/10℃):		±0.017
Temp. effect on zero(%F.S/10℃):		±0.02
Use temp. range(℃):		-20～+55
Excitation voltage(V):		9～12(DC)
Safety overload (%F.S)		150%
Ultimate overload (%F.S)		200%
Defend grade		IP67
Cable Length:		3 meters -10 meters

Connection Method
