Parallel Beam Load Cell SL-01 High Precision 100-3000G Capacity

Ask Lasest Price
Brand Name :	TOP SENSOR
Model Number :	SL-01
Certification :	CE
Payment Terms :	T/T, Western Union
Supply Ability :	5000 pcs per month
Delivery Time :	20 days
Price :	Negotiable

Add to Cart

Product Details
Company Profile

Parallel Beam Load Cell SL-01 High Precision 100-3000G Capacity

Micro Load Cell, Parallel Beam Load Cell,Miniature Load Cell

Model: SL-01

Capacity: 100-3000G

Features:
Alloy Aluminum material, High Precision, Colourless anodized, small size, low costs
Parallel Beam type, easy installation, suitable for electronic kitchen scales,

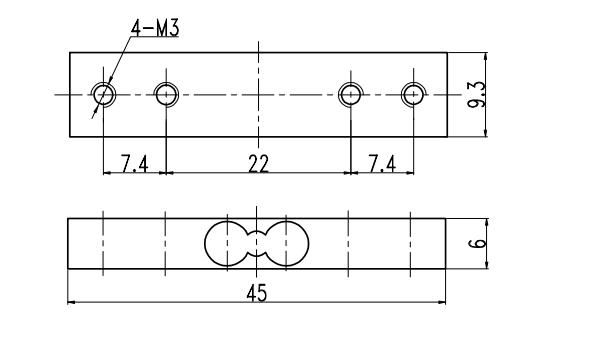

Dimensions:(mm)

Parallel Beam Miniature Load Cell With Alloy Aluminum Material Easy Installation

SPECIFICATION
Precision:		0.05% FS
Rated Output:		1.0 ±0.01
Creep(%F.S/30min):		±0.05
Zero balance(%F.S):		±1.0
Input resistance:		1000±10
Output resistance:		1000±5
Insulation resistance:		≥5000(100VDC)
Temp. effect on span(%F.S/10℃):		±0.03
Temp. effect on zero(%F.S/10℃):		±0.03
Use temp. range(℃ ):		-20～+40
Excitation voltage(V):		9～12(DC)
Safety overload (%F.S)		150%
Ultimate overload (%F.S)		200%
Defend grade		IP67
Cable Length:		220 -660 mm
Wire Connection Method
RED=Input+	BLACK=Input-	GREEN=Output+	WHITE=Output-

Product Tags:

mini load cell

small load cell

High Precision Parallel Beam Load Cell
